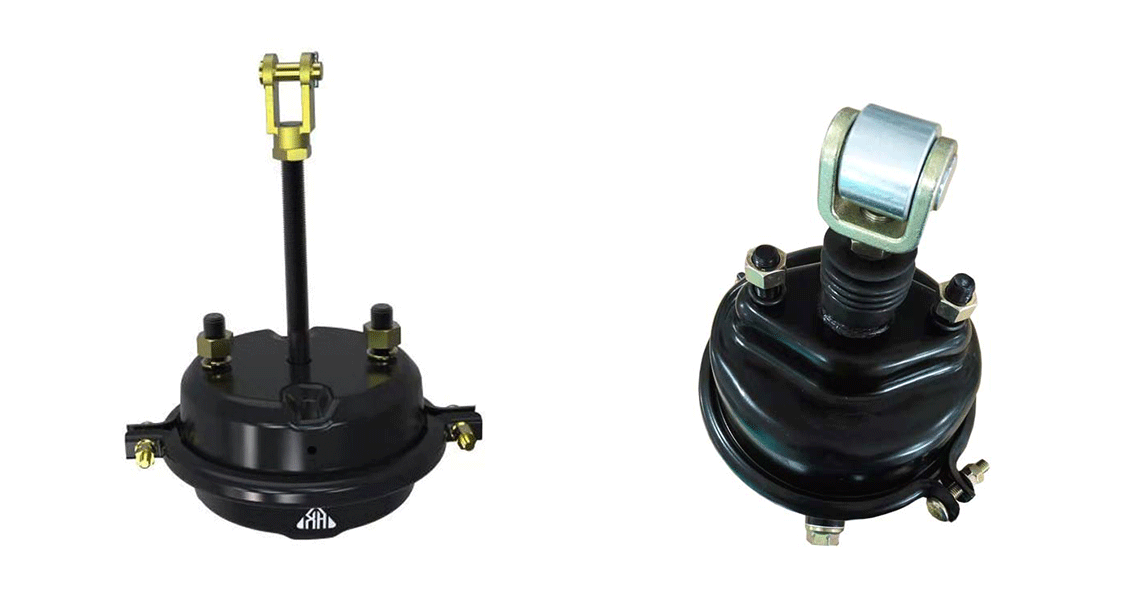

Brake Chamber for Semi Truck
20+ years of experiences (since 2005)
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality Standards: SAE J14659
Return spring：>2,000,000 cycles
Life-time: >1,000,000 cycles
Salt spray test: Passes 200 hours
Synthetic blended rubber diaphragms: Superior resistance against abrasion and fatigue cracking
Product Description:
Type: Type 24 brake chamber
Application: Semi-truck
Size: 24 square inches
Mounting: Universal mounting (angle or straight)
Pushrod: Adjustable pushrod length
Material: Durable and heavy-duty construction
Compatibility: Suitable for most semi-truck air brake systems
Parameters:
| Type | Stroke | R1 | R2 | L1 | L2 | Pushrod Thread Length L4 | Pushrod Thread | Air Inlet Thread | Mounting Bolt Thread | Mounting Inluded Angle | Weight |
| T-24 | 64 | 116 | 93 | 110 | 227 | 207 | 5/8"-18UNF2A | 3/8"-NPTF | 5/8"-1 1UNC2A | 45° | 4kgs |
| T-30 | 64 | 130 | 106 | 110 | 255 | 255 | 5/8"-18UNF2A | 3/8"-NPTF | 5/8"-1 1UNC2A | 45° | 4.6kgs |
| Type | Chamber Volume(Litre) (Measure Pressure:700kpa) | Parking Chamber Force Output (kn) | (Stroke:38mm) | Diaphragm | |||||||
| 400kpa | 700kpa | Working Area(SQ cm) | Dia.At Clamp Point (mm) | ||||||||
| T-24 | 1.08 | 5.58 | 9.8 | 141 | 161 | ||||||
| T-30 | 1.48 | 7.3 | 12.8 | 180 | 181 | ||||||
Applications:
The Type 24 brake chamber is a reliable component in semi-truck air brake systems, providing the necessary braking force for safe and efficient operation of the vehicle. You can find this type of brake chamber at truck parts suppliers and dealers specializing in commercial vehicle components.
