Manual Slack Adjuster

20+ years of experience (since 2005)
Implementation of ISO 9001-2015 by an independent laboratory
Quality tested Warranty: 12 months from date of shipment

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description:

A manual slack adjuster is a device used in air brake systems on vehicles, such as trucks and buses, to adjust the clearance between the brake shoes and the brake drums. This adjustment is necessary to ensure proper braking performance and to prevent excessive wear on the brake components.

To adjust a manual slack adjuster:

Park the vehicle on a level surface and chock the wheels to prevent it from rolling.
Locate the manual slack adjuster on the brake assembly. It is usually found near the brake chamber.
Use a proper tool, such as a slack adjuster wrench, to turn the adjusting nut in the appropriate direction to either increase or decrease the slack. Refer to the vehicle manufacturer's specifications for the correct direction.

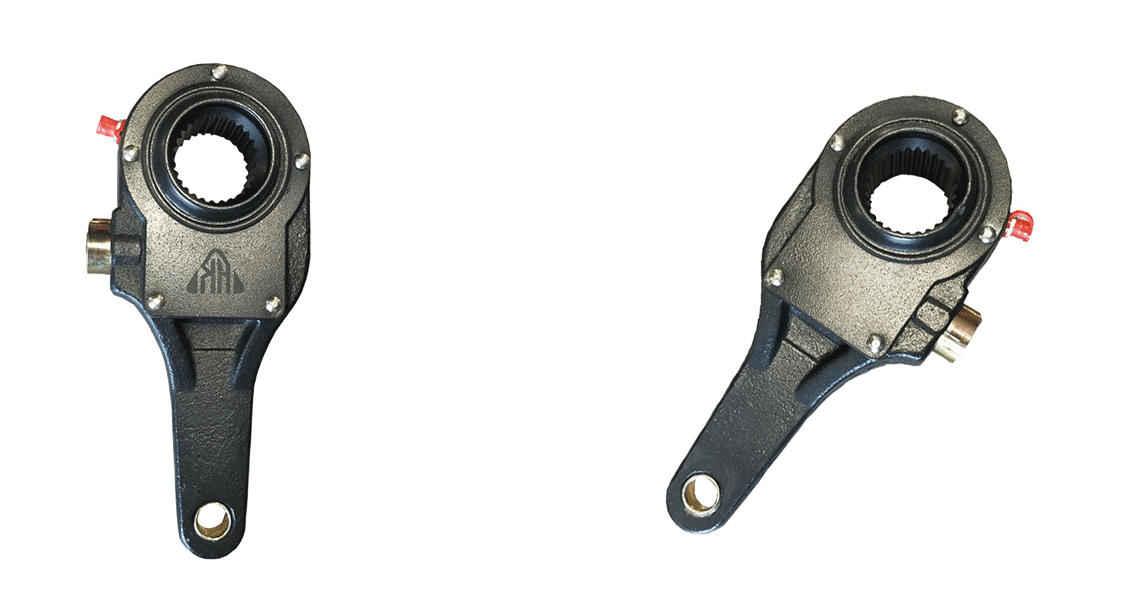

Manual Slack Adjuster

Product parameters:

NO	OE#Reference		Spline	Arm Length (mm)				OAL	Bushing (mm)
NO	Midland	Bendix	Spline	A	B	C	D	OAL	Bushing (mm)
1	\	101827	1 1/2"-10	\	152.4	\	\	168	￠12.7
2	\	289858	1 1/2"-28	\	152.4	\	\	168	￠12.7
3	KN44041	283411	1 5/8"-37	127	152.4	\	\	168	￠12.7
4	KN47011	278321	1 1/2"-10	127	152.4	\	\	168	￠12.7
5	KN44051	286695	1 1/2"-28	127	152.4	\	\	168	￠12.7
6	\	\	1 5/8"-37	127	152.4	\	\	168	￠12.7
7	KN47001	278323	1 1/2"-10	127	152.4	177.8	\	193	￠12.7
8	KN44071	288282	1 1/2"-28	127	152.4	177.8	\	193	￠12.7
9	KN44042	\	1 5/8"-37	127	152.4	177.8	\	193	￠12.7
10	18-048	\	1 1/2"-10	127	152.4	177.8	203.2	219	￠12.7
11	\	\	1 1/2"-28	127	152.4	177.8	203.2	219	￠12.7
12	18-116	\	1 5/8"-37	127	152.4	177.8	203.2	219	￠12.7
13	XH03080016	\	1 1/2"-28	\	152.4	\	\	\	M16X1.5
14	XH03080017	\	1 1/2"-28	\	152.4	\	\	\	M16X1.5

Applications:

Manual slack adjusters are commonly used in heavy-duty vehicles equipped with air brake systems, including trucks, buses, trailers, and some recreational vehicles. These devices play a critical role in maintaining the proper clearance between the brake shoes and drums to ensure effective braking performance and safety on the road.

Manual Slack Adjuster
