Double Air Brake Chamber for Trailer

20+ years of experiences (since 2005)
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality Standards: SAE J14659
Return spring：>2,000,000 cycles
Life-time: >1,000,000 cycles
Salt spray test: Passes 200 hours
Synthetic blended rubber diaphragms: Superior resistance against abrasion and fatigue cracking

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description:

Design: Consists of two chambers in a compact unit, providing redundancy and balanced braking.
Size: Common sizes include Type 24/24, Type 24/30, or Type 30/30 configurations, indicating the square inch size of each chamber.
Application: Specifically designed for use in the air brake systems of trailers to ensure effective braking performance.
Mounting: Features universal mounting options for easy installation on trailers.
Function: Utilizes compressed air to generate mechanical force and actuate the trailer brakes.
Material: Typically made from durable materials suitable for heavy-duty trailer applications.

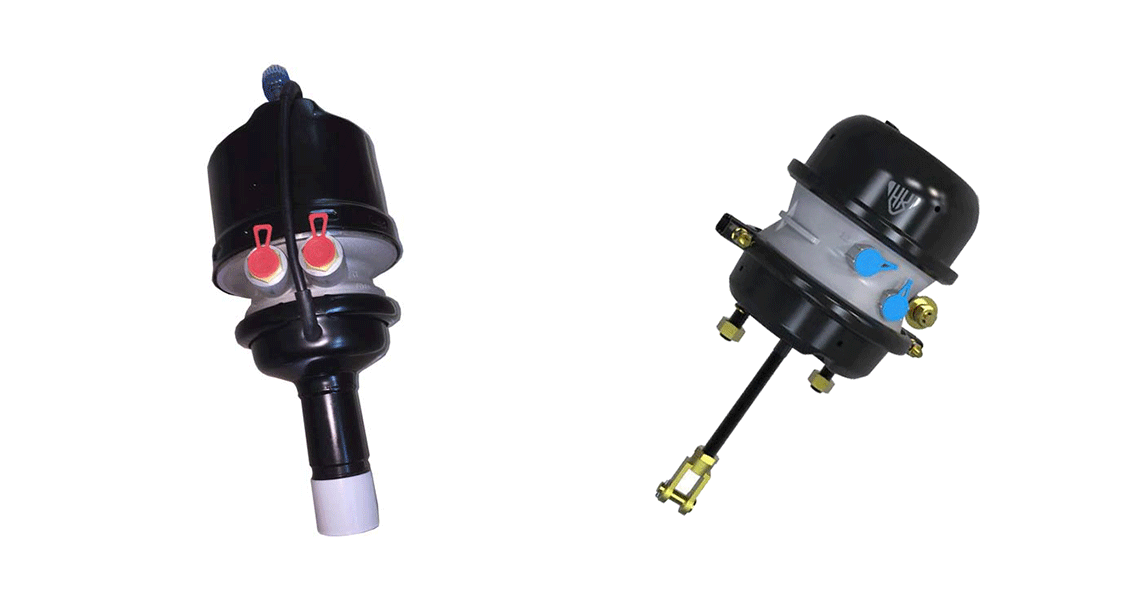

Double Air Brake Chamber for Trailer

Product parameters:

Type	Stroke	R1	R2	L1	L2	Pushrod Thread Length L4	Pushrod Thread	Air Inlet Thread	Mounting Bolt Thread	Mounting Inluded Angle	Weight

T-24/24	64	116	93	224	270	207	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	45°	8kgs
T-30/30	64	130	106	238	255	255	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	45°	9kgs
T-24/30	64	116	93	230	212	255	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	90°	8kgs
(Litre) Chamber Volume(Litre) (Measure Pressure:700kpa)
Type	Service Chamber				(Parking) Paking Chamber	(Service) Service Chamber	Paking Chamber		Parking Chamber Hold-off Pressure	Parking Chmber Force Output (Stroke:38mm)



T-24/24	1.04					1.16			537	4.98
T-30/30	1.32					1.78			500	6.11

Application:

Double air brake chambers for trailers offer enhanced braking performance and safety by providing dual braking systems within a single unit. They are crucial components in ensuring reliable and responsive braking control for trailers during operation on the road. Proper maintenance and inspection of these brake chambers are essential to maintain their functionality and safety standards.

Double Air Brake Chamber for Trailer
