Type 30/30 brake chamber

20+ years of experiences (since 2005)
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality Standards: SAE J14659
Return spring：>2,000,000 cycles
Life-time: >1,000,000 cycles
Salt spray test: Passes 200 hours
Synthetic blended rubber diaphragms: Superior resistance against abrasion and fatigue cracking

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description:

The trailer Type 30/30 brake chamber is an important component of the trailer braking system equipped with air brakes. Like trucks and other heavy vehicles,

the dual air brake chambers in trailers consist of two chambers that work together to apply braking force when the brake pedal is pressed.

The double air brake chamber in a trailer plays a vital role in ensuring safe and effective braking performance while towing heavy loads. It helps to slow down and stop the trailer when needed, working in conjunction with the braking system of the towing vehicle. Proper maintenance and inspection of the double air brake chamber are essential to ensure the safety and reliability of the trailer's braking system.

As with any vehicle component, it is important to follow manufacturer recommendations for maintenance and replacement intervals to ensure that the double air brake chamber continues to operate effectively and support safe towing operations.

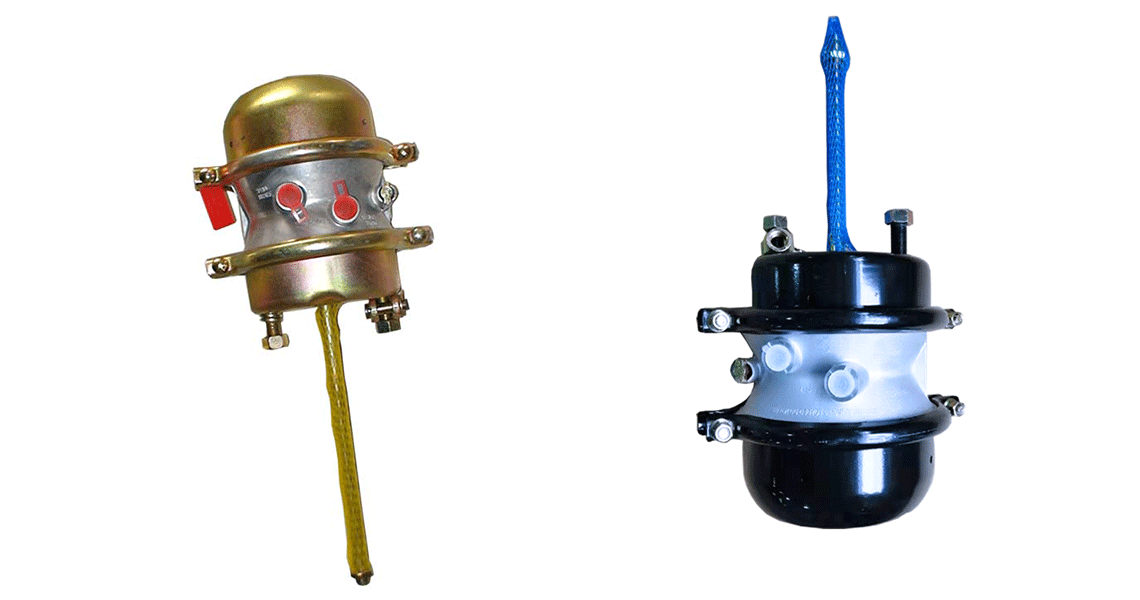

Type 30/30 brake chamber

Product parameters:

Type	Stroke	R1	R2	L1	L2	Pushrod Thread Length L4	Pushrod Thread	Air Inlet Thread	Mounting Bolt Thread	Mounting Inluded Angle	Weight

T-24/24	64	116	93	224	270	207	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	45°	8kgs
T-30/30	64	130	106	238	255	255	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	45°	9kgs
T-24/30	64	116	93	230	212	255	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	90°	8kgs
(Litre) Chamber Volume(Litre) (Measure Pressure:700kpa)
Type	Service Chamber				(Parking) Paking Chamber	(Service) Service Chamber	Paking Chamber		Parking Chamber Hold-off Pressure	Parking Chmber Force Output (Stroke:38mm)



T-24/24	1.04					1.16			537	4.98
T-30/30	1.32					1.78			500	6.11

Application:

The double air brake chamber is commonly used in heavy-duty trucks, buses, and other large commercial vehicles that are equipped with air brake systems. These types of vehicles require powerful braking capabilities to safely stop their heavy loads, making the double air brake chamber an essential component for effective braking performance.

The application of the double air brake chamber is critical in ensuring the safe operation of these vehicles on the road. The chambers work in tandem to engage the brake system when the driver applies the brake pedal, helping to slow down or stop the vehicle efficiently. Proper maintenance, inspection, and replacement of the double air brake chamber as needed are vital to ensure the overall safety and performance of the braking system in commercial vehicles.

Type 30/30 brake chamber
