20+ Years of experiences (since 2005)
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality standards: GB/T 19844-2018, GT/T 1222-2007
Product description:

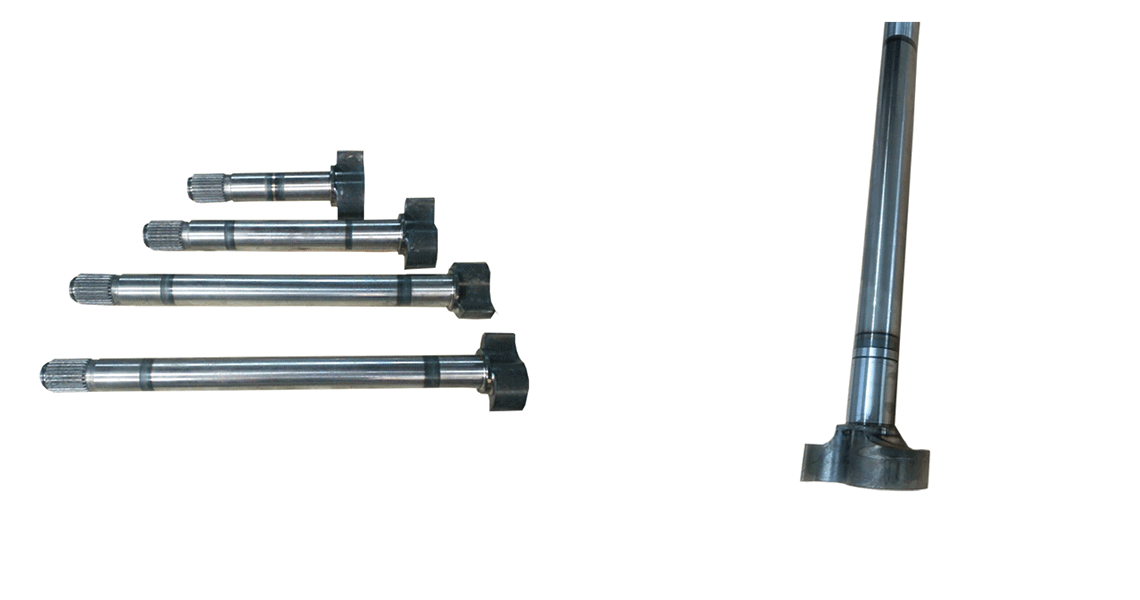

Truck Brake S Camshaft Axle S Camshaft is an integral component of our piston engine, minimizing the maintenance cost of vehicles by not only making each brake component more rigid, but better adapting to the relevant parts.
S-Camshafts are very effective at retaining brakes because the more the brake pad wears, the more the S-Camshaft rotates, causing the pads to move further. As the lobes on the S-Camshaft increase in radius as they rotate, the linear motion of the brake pads increases. Of course, you want to adjust your brakes regularly to make sure there is no slack in your brake system and that your brakes are responsive.
S-Camshafts are unidirectional. S-Camshaft is divided into two as left and S-Camshaft right.
.
Product parameters:
Model | Make | OE#Reference | DIA(D2*D1)*L(mm) | Teeth | ||
Left | Right | Left | Right | |||
XHB538L/R | BPW | 05.097.05.13.0 | 05.097.05.14.0 | 42*538L | 42*538R | 10 |
XHB547L/R | BPW | 05.097.05.15.0 | 05.097.05.16.0 | 42*547L | 42*547R | 10 |
XHB585L/R | BPW | 05.097.05.17.0 | 05.097.05.18.0 | 42*585L | 42*585R | 10 |
XHB638L/R | BPW | 05.097.05.23.0 | 05.097.05.24.0 | 42*638L | 42*638R | 10 |
XHB663L/R | BPW | 05.097.05.24.0 | 05.097.05.25.0 | 42*663L | 42*663R | 10 |
XHM545L/R | BENZ | 623 423 01 36 | 623 423 02 36 | 42*545L | 42*538R | 26 |
XHF593L/R | FRUEHAUF | A-JA-0476-003 | A-JA-0476-004 | 42x593 | L42x593R | 37 |
XHF637L/R | FRUEHAUF | A-JA-0660-003 | A-JA-0660-004 | 42x637L | 42X637R | 37 |
XHF588L/R | FRUEHAUF | / | / | 41x588L | 41X588R | 37 |
XHF665L/R | FRUEHAUF | / | / | 41x665L | 41X665R | 37 |
Application:
Truck Brake S Camshaft Axle S Camshaft are widely used in semi-trailers, which are commonly attached to semi-trucks for hauling goods. These trailers rely on S-camshafts to ensure effective braking control and safe operation during transportation.The S Camshaft is designed to work in conjunction with other components such as brake drums, brake shoes, air brake chambers, and slack adjusters to ensure effective braking performance. Proper installation, maintenance, and periodic inspection of the S Camshaft are crucial to ensure the overall safety and reliability of the braking system in these types of vehicles.
